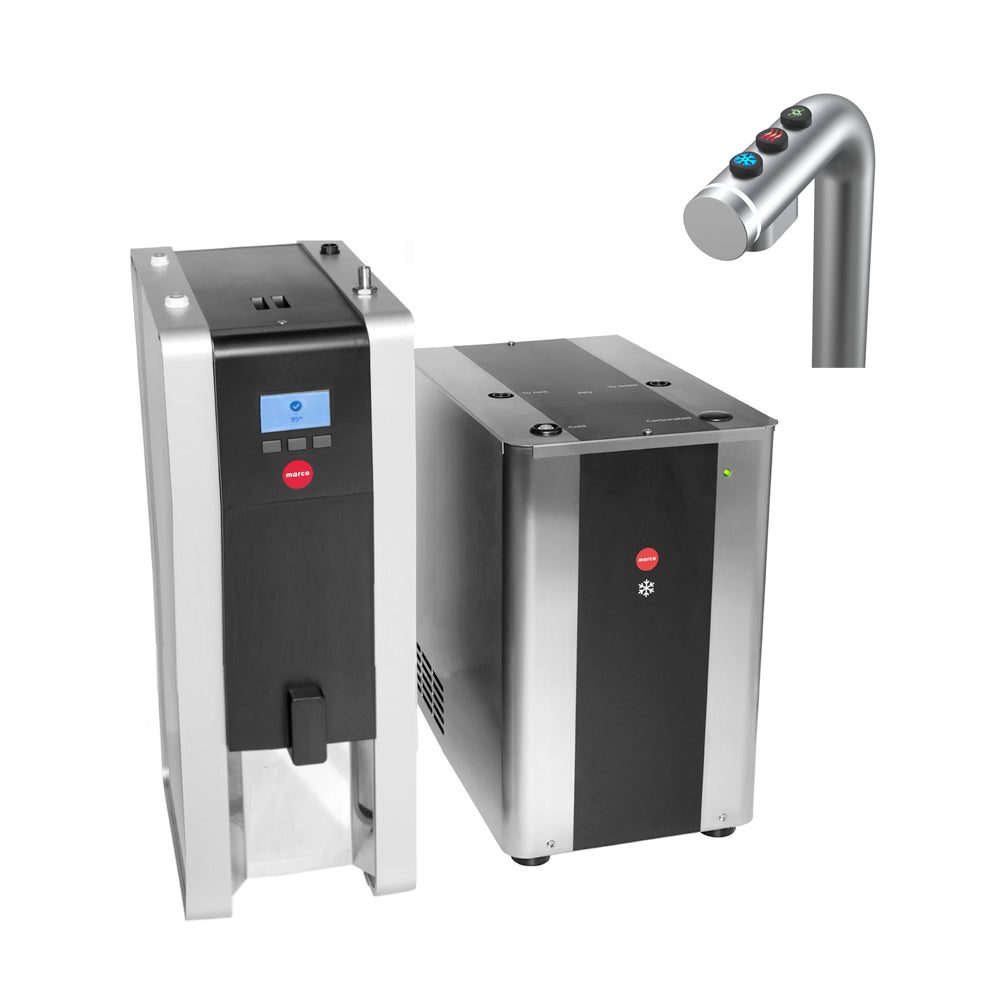

FRIIA HCS
First Draw Off: 3L
Cups per Hour-Hot (170ml): 165
Cups per Hour-Cold/Sparkling (170ml): 235(ΔT=10 degree Celsius)
DIMENSIONS

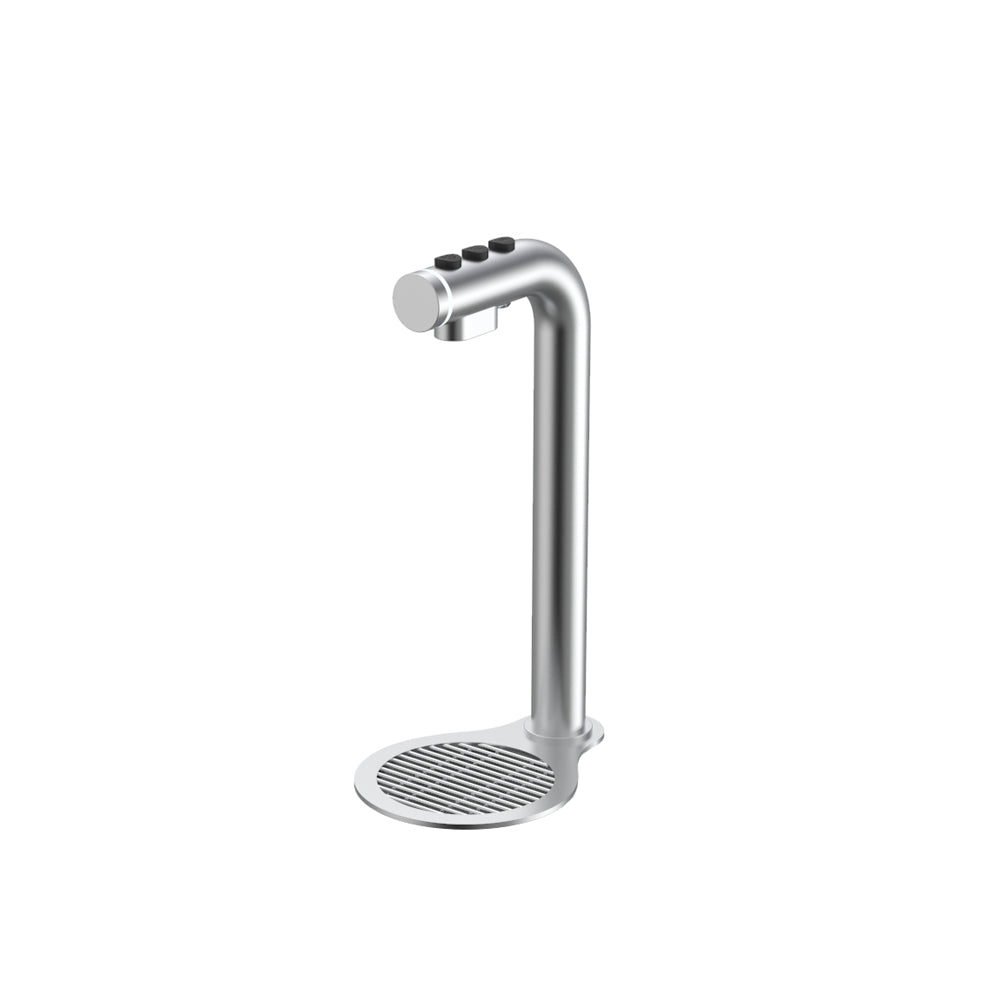

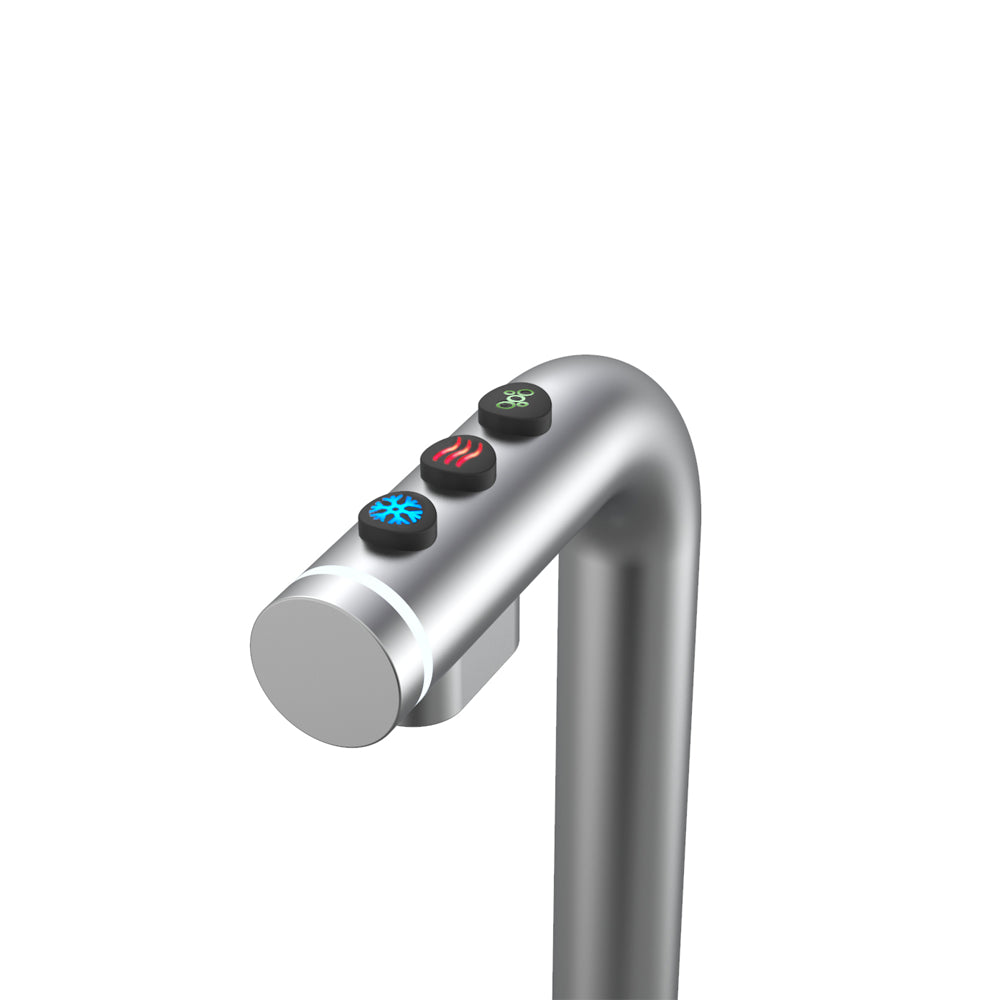

Font: 30D x 30W x 292Hmm w/o drip tray (247 tap to counter)
Boiler: 385D x 210W x 444H
Chiller: 436D x 259W x 455H
WEIGHT
Font: 740g
Boiler: 9.2 kg
Chiller: 31kg
Chiller/Carbonator: 35kg
POWER REQS
Boiler: 2.8kW
Chiller: 180W
PLUMBING REQS
Boiler: ¾” BSP
Chiller: ¾” BSP
CHILLER SPECS
Cooling Capacity: 35/40 lt/hr
Compressor Power: 1/8 hp
Cooling System: Aluminium Block
Refrigerant: R290
PACKAGING DIMENSIONS
490L X 300W X 515Hmm
Boiler: 11 Kg
Chiller Carbonator: 35.5Kg
Font: 2Kg
Total Weight: 48.5Kg
FRIIA HCS PLUS
First Draw Off: 8L
Cups per Hour-Hot (170ml): 165
Cups per Hour-Cold/Sparkling (170ml): 235(ΔT=10 degree Celsius)
DIMENSIONS
Font: 30D x 30W x 292Hmm w/o drip tray (247 tap to counter)
Boiler: 385D x 210W x 610H
Chiller: 436D x 259W x 455H
WEIGHT
Font: 740g
Boiler: 9.2 kg
Chiller: 31kg
Chiller/Carbonator: 35kg
POWER REQS
Boiler: 2.8kW
Chiller: 180W
PLUMBING REQS
Boiler: ¾” BSP
Chiller: ¾” BSP
CHILLER SPECS
Cooling Capacity: 35/40 lt/hr
Compressor Power: 1/8 hp
Cooling System: Aluminium Block
Refrigerant: R290
PACKAGING DIMENSIONS
490L X 300W X 515Hmm
Boiler: 14 Kg
Chiller Carbonator: 35.5Kg
Font: 2Kg
Total Weight: 51.5Kg
